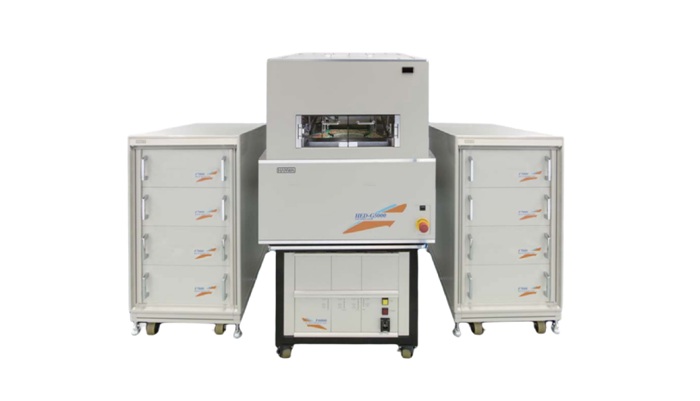

Automatic ESD Tester
HANWA HED-G5000 is adaptable to international standard waveforms such as JEDEC, ESDA, AEC and JEITA, and features a uniquely short discharge circuit made possible by its original mechanical design. The short circuit minimizes the influence of inductance and capacitance on the data. Furthermore, the use of a single circuit ensures data stability for each device pin tested.
ADVANTAGES
ADVANTAGES
Single discharge circuit:
- New mechanical GND grounding design
- Extremely low parasitic capacitance minimizes the impact on data
Adaptable to multiple international standard waveforms: JEDEC/ESDA/AEC/JEITA
Maximum 2048 Pins
Can be used as Latch-up test
Easy and convenient operation effectively shortening the testing process
FUNCTION DESCRIPTION
FUNCTION DESCRIPTION
【System Interface】
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
| HED-G5000 | |||
|---|---|---|---|
| Design Base | Mechanical | ||
| Matrix | No Relay System | ||
| Test Model | HBM, MM & Latch Up Customize Available | ||
|
Test Level |
HBM: 10V to 8kV step 5V | ||
|
MM: 10V to 4kV step 5V |
|||
| Latch Up: 100V/1A, 35V/1A | |||
|
Latch Up |
JESD78 with Vector Option | ||
|
Vector |
10MHz max, 0.5 ~ 5V, 256k depth | ||
|
Pin Count |
Max 2048 Customize Available | ||
|
DUT V/I Supplies |
Max 7: 100V/1A, 35V/1A, 1A/100V | ||
|
Dimensions |
(W)200cm*(D)105cm*(H)150cm Depend on System | ||
|
Weight |
500kg | ||
|
Operation System |
Windows | ||
|
AC Voltage |
100-240V/20A | ||
