Silicon Photonics Tester

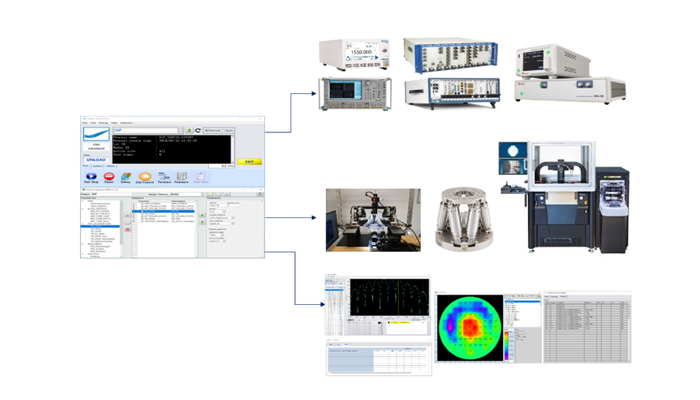

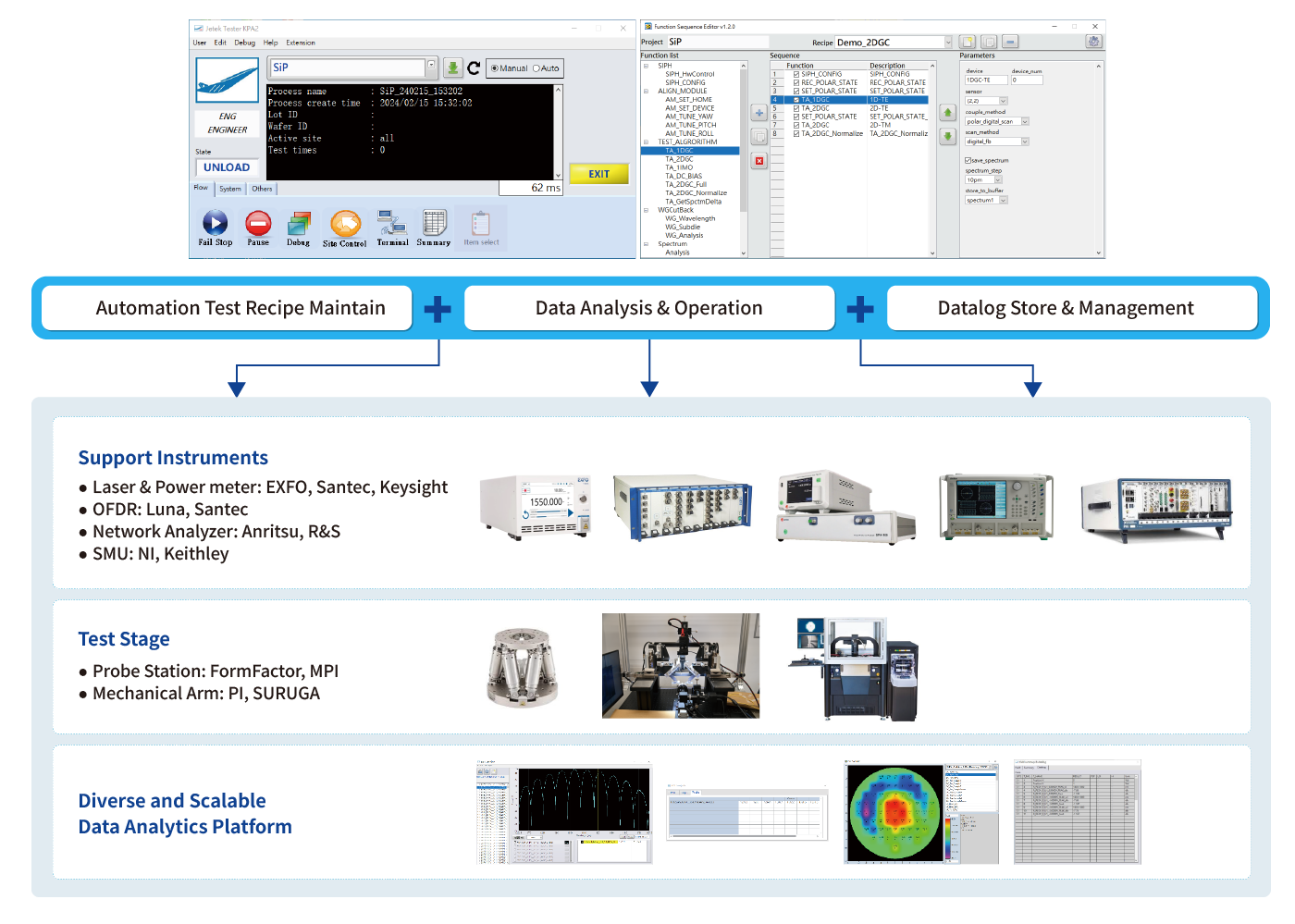

Jetek Technology has integrated a semi-automatic probe station with an optical testing system to build an automated testing platform for silicon photonics. This platform can test optical components such as 1DGC, 2DGC, and DC_BIAS, collecting data on insertion loss, spectrum, and calculating characteristics like peak wavelength, 1dB bandwidth, and FWMH (Full Width at Half Maximum).
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
FEATURES
FEATURES
Support various prober stations and handlers
Compatible with a wide range of measurement instruments (e.g., KEYSIGHT, EXFO, NI, etc.)
The sequence editor UI allows users to easily program test items and parameters
Features graphical display of item values
User-friendly interface, perfect for both mass production and engineering modes
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
| Model | T500S-O | T500S-CL | |
|---|---|---|---|
| Wavelength | Operating wavelength range at 13 dBm(nm) | 1240 - 1360 | 1500 - 1640 |
| Wavelength uncertainly (pm) | 1270 - 1360 | 1500 - 1620 | |
| Wavelength repeatability (pm) | ±5 (typical) ±20 | ||
| Wavelength stability (pm) | ±5 (typical) | ||
| Wavelength resolution setting (pm) | 0.1 | ||
| Speed Control | Maximum speed (nm/s) | 200 | |
| Adjustable speed (nm/s) | 20, 50, 100, 200 with bidirectional scanning | ||
| Mode-hop free operation | Active mode-hop cancelation | ||
| Sweep resolution (pm) | 0.1 | ||
| Optical Power | Maximum output power (dBm) | 15 | 14 |
| Nominal output over full wavelength range (dBm) | 10 | ||
| Power stability | ±0.01 (typical) | ||
| Spectral Characteristics | Linewidth (10μm integration time) (kHz) | <25 (typical) | |
| Linewidth (100μm integration time) (kHz) | <250 (typical) | ||
| Side mode suppression ration (SMSR) (dB) | > 45 | ||
| Signal-to-source spontaneous emission ration (SSSER) (dB) | 90 (typical) | ||
| Signal-to-total-source spontaneous emission ration (STSSER) (dB) | 75 (typical) | ||
| Relative intensity noise (RIN)(dB/Hz) | -145 | ||
| Optical Output | Optical fiber type | PM optical fiber, FC/APC connector | |
| PER (dB) | 17 (typical) | ||
